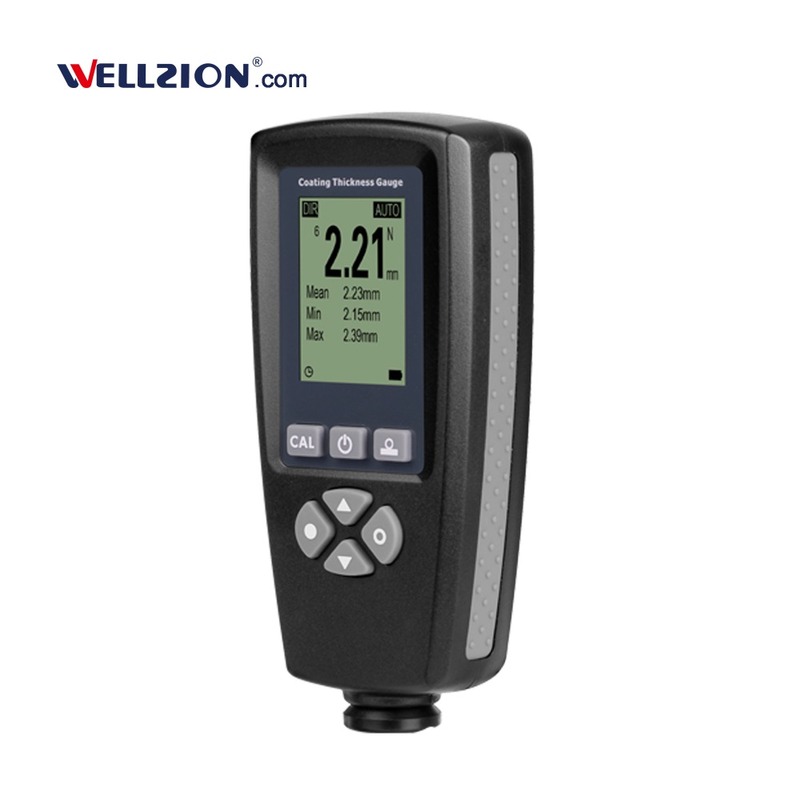

EC-770X,F 5000um N3000um pocket thickness gauge
Our thickness gauge design to measure the non-magnetic layers (painting, enamel, chrome etc) on steel and iron as well as all types magnetic base surface and non-conductive layers (painting and anodizing coatings on non-ferrous metals) on non-ferrous surface (aluminum, zinc or Copper etc).
All for easy and high efficient operation:
Big button design and built in menu guide to operate easily
Make “IT” automatically:
The probe will detect magnetic induction or eddy currents automatically.
In GEN status separate data group and readings will stored automatically.
Each group support individual statistics, alarm limit settings and calibration.
CAL button press to start calibration.
| Model | EC-770 | EC-770S | EC-770X | |
| Magnetic Induction | √ | √ | √ | |
| Eddy Current Effect | √ | √ | √ | |
| Measurement Range | F | 0~2000μm | 0~2000μm | Probe Options: F2.5: 0~2500μm F3.0: 0~3000μm F5.0: 0~5000μm |
| N | 0~2000μm | 0~2000μm | Probe Options: N2.5: 0~2500μm N3.0: 0~3000μm |
|
| Measurement Accuracy | F | 2.5%+1μm | 2%+1μm | 2%+1μm |
| N | 2.5%+1μm | 2%+1μm | 2%+1μm | |
| Resolution | 0μm~99.9μm | 0.1μm | 0.1μm | 0.1μm |
| 100μm~999μm | 1μm | 1μm | 1μm | |
| >1000μm | 0.01mm | 0.01mm | 0.01mm | |
| Data Storage | 320 Readings | 2000 Readings | 2000 Readings | |
| Multi-Language | √ | √ | √ | |
| Real-time Data Statistics | √ | √ | √ | |
| CPU | 16 Bits MCU | 32 Bits ARM | 32 Bits ARM | |
| Automatic Temperature Compensation | x | √ | √ | |
| Reset Zero | √ | √ | √ | |
| Multi-Point Calibration | √ | √ | √ | |
| Measurement Data Grouping | √ | √ | √ | |
| One Key Data Clear (Press to delete) | √ | √ | √ | |
| One Key Group Data Clear (Press and hold to delete) | x | √ | √ | |
| Multi-Level Battery Indicator | x | √ | √ | |
| Digital Display | 128*128 Dots | 128*128 Dots | 128*128 Dots | |
| Auto Power Off | √ | √ | √ | |
| USB Interface | √ | √ | √ | |
| Storage Temperature | 0°C~60°C | |||
| Operating Temperature | -10°C~60°C | |||
| Power Supply | 2 x 1.5V AAA Batteries | |||
