Mini Digital Metal Coating Thickness Gauge Car Paint Tester Automotive Tool High Definition Colored Screen Meter CTM-276

1 Piece
MOQ
$82.41(1 - 2 Pieces) $80.24(3 - 5 Pieces) $76.23(6 - 9 Pieces) $74.37(>=10 Pieces)
Price
Mini Digital Metal Coating Thickness Gauge Car Paint Tester Automotive Tool High Definition Colored Screen Meter CTM-276
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Model Number: CTM-276
Type: Digital Colored Thickness Meter
Resolution: [0.1μm(<100μm),1μm(≥100μm)]/0.1mil/0.001
Magnetic Metal Substrate Diameter: 12mm
Value Measurement: MAX/MIN/AVG/DIFF
Display: Color-screen HD
Power Supply: 3 X 1.2V NiMH Battery
Measurement Error: ≤150μm ±5μm / >150μm ±(3%H+1μm)
Measurement Range: 0~1500um/0~59mil/0~1.5mm
Basic Infomation
Model Number: CTM-276
Payment & Shipping Terms
Packaging Details: Standard Factory Packaging
Product Description
Product Description

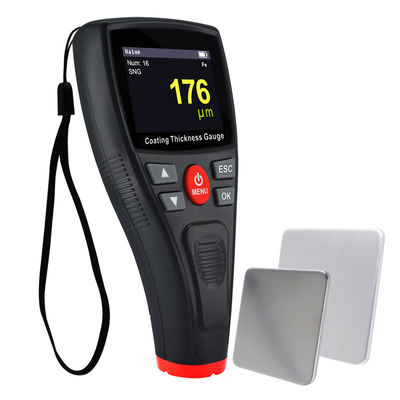

Colored-screen Coating Thickness Meter

This thickness meter has a high definition display that can quickly, non-destructively & accurately measure coating thickness.
APPLICATION:
widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing areas.

HD Colored Display w/ Menu Operation

* Non-magnetic coating on magnetic metal substrate surface
* Non-metallic coating on a non-magnetic metal substrate
* Single measurement and continuous measurement method
* Three calibration modes: basic, offset, zero calibration
* Switchable measurement unit: µm/mm/mil
* Data storage function
* Six background color available
Specifications
Measurement range
0~1500um/0~59mil/0~1.5mm
Resolution
[0.1μm(<100μm),1μm(≥100μm)]/0.1mil/0.001mm
Measurement error
≤150μm ±5μm / >150μm ±(3%H+1μm)

Magnetic metal substrate
Minimum diameter: 12mm
Magnetic metal substrate
Minimum thickness: 0.5mm
Non-magnetic metal substrate
Minimum diameter: 50mm
Minimum thickness: 0.5mm

Minimum radius of curvature
Magnetic convex substrate: 2mm
Magnetic concave substrate: 11mm
Power Supply
3 x 1.2V NiMH battery (weight 36.5g) or 5V1A power adapter
Size
approx. 70.3 x 36.6 x 149.59mm
Weight
approx. 136.9g (including battery)
Details Images


Can choose different Color

Six Background color available to choose from for background and interface itself.

~ BLUE, ORANGE, RED, PURPLE, GREEN, GRAY


Switchable measurement unit


µm/mm/mil
Fully automatic four-way screen rotation
Screen Rotation for your convenient..

TEST PROBE

Help in knowing how thick is the testing surface is.

USB PORT for CHARGING

NOTE:
Charging function is only for RECHARGEABLE BATTERIES.
Packing & Delivery




SET INCLUDES:

1 x Digital Colored Thickness Meter 1 x Iron Substrate 1 x Aluminum Substrate 6 x Calibration plates 1 x USB cable & adaptor English Instruction Manual Carrying Case Standard factory packaging
