Features

Specifications

Model Number: BT

Power: Electronic

Name: Digital Ultrasonic Thickness Gauge Meter

Certificate: ISO,CE,IAF

Standard: ASTM,GB

Warranty: 12 Months

Storage: 200K Measuring Point Of Steel Bar

Application: Measurement Of Steel Thickness

Weight: 1kg

Scanning Range: Borderless

Data Transmission Mode: USB\ Wireless

Working Hours: More Than 250 Hours

Basic Infomation

Certification: ISO,CE,IAF

Model Number: BT

Payment & Shipping Terms

Packaging Details: Packed with aluminum case or as customer's request

Product Description

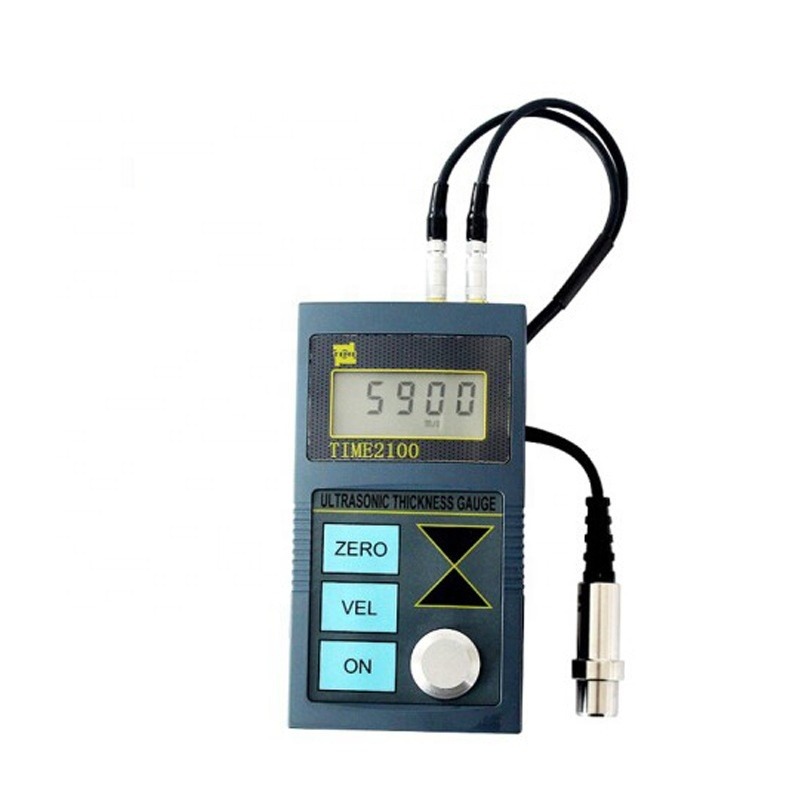

Digital ultrasonic thickness gauge meter steel iron thickness testing through coating

Model	TIME 2100
Measurement Range	1.2~225mm
Display resolution(mm)	0.1
Sound speed regulation range	1000-9999
Repeatability	0.1
Showing	Four LCD
Frequency Bandwidths	1~10MHz
Indication error of curved surface measurement	Φ20mm×3.0mm (Probe: 5MHz, Φ10mm) Φ15mm×2.0mm (Probe: 7.5MHz, Φ6mm)
Sound velocity measurement(m/s)	When h ≤ 20mm, the measurement error shall not exceed + / - 1mm / hx100% H> The measurement error is less than 5%
Operating Time	250 hours typical battery life, 100 hours continuous with backlight on
Operating Temperature Range	-10℃~50℃(Ambient Environment) -10℃~300℃(High Temperature Mode)
USB
Gauge Size	136 mm×72 mm×27mm
Weight	140g(Including Batteries)

Testing machine series

Shipping

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3. Customers specifying freight forwarders or negotiable shipping methods!

4. Delivery Time: 7 days

Digital ultrasonic thickness gauge meter Ultrasonic Flaw Detector Machine through coating

TSONIC TIME2110 TIME2110 Ultrasonic Thickness Gauge
