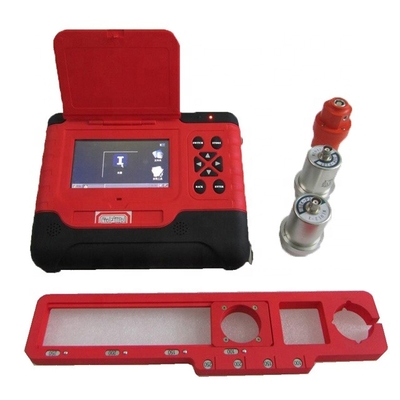

High Accuracy Multifunction Ultrasonic Concrete Crack Width and Depth Gauge 2 in 1 Width Depth Meter
High Accuracy Multifunction Ultrasonic Concrete Crack Width and Depth Gauge is mainly used for accurate detection of crack width and crack depth of bridges, tunnels and concrete pavement.Concrete crack comprehensive detector is a comprehensive instrument which combines crack width meter and crack sounder. Users can not only observe and record the width of cracks in real time by means of color microprobe, but also measure the depth of cracks by means of ultrasonic probe.
Feature:
1) Standard and high-fit two color micro-amplification probes are available to meet different needs of width measurement.
2) Standard and simple two depth measurement methods. The user can perform the standard method depth measurement according to the regulations;
The two-point simple method of crossing the seam quickly measures the crack depth, greatly simplifying the field operation steps.
3) Standard ultrasonic transducer bracket, the measuring point spacing is precisely adjustable; eliminating the on-site marking, greatly improving the detection efficiency.
4) Adopting automatic image recognition and width intelligent calculation technology, the crack position does not need to be adjusted, and on-site inspection is convenient and quick.
5) Automatic crack identification calculation, real-time display, high degree of intelligence.
6) Touch screen operation is simple and fast.
7) On-site full-process voice and text prompts, the human-computer interaction interface is extremely friendly.
8) The instrument has built-in various help files and demonstration videos to facilitate the user's proficiency in instrument operation.
9) A 4GB SD card can store more than 200,000 measurement files.
10) Powered by a high-efficiency, energy-saving rechargeable lithium battery, low power consumption.
Parameter
Product name |
Ultrasonic Concrete Crack Width Depth Detector |
Crack Width Test Rang |
Standard Probe: 0.01mm~6.5mm |
Crack Width Test Accuracy |
Standard Probe:≤±0.02mm;High Grade Probe: ≤±0.01mm |
Crack Depth Test Rang |
10mm~500mm |
Crack Depth Test Accuracy |
≤±5% |
Operation Mode |
key+touch screen |
Power Supply |
Rechargeable Lithium Battery |
Working Time |
≥28 Hours |
Working Temperature |
-10℃~+50℃ |
Working Humidity |
≤90%RH |
Weight |
5KG |
Packing Size |
46x35x16cm |
