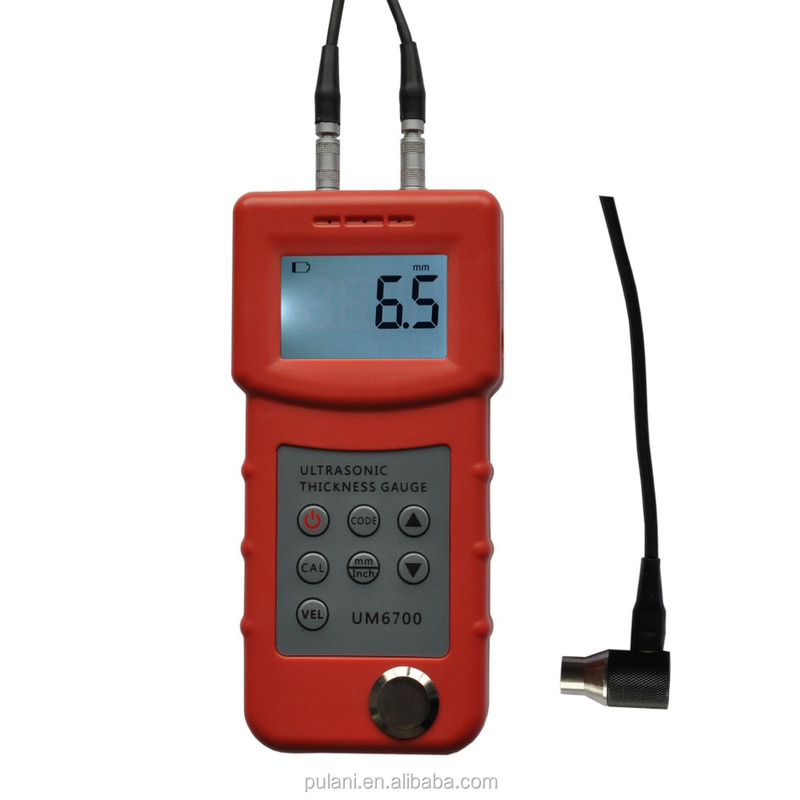

High-performance portable ultrasonic thickness gauge meter tester equipment
Introducton & Application:
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other ultrasonic wave well-conductive materials.
Specifications:
| Display: | 4.5 digits LCD with EL backlight |
| Operating principle: | ULTROSONIC |
| Measuring range (metric/imperial): | 1.0-280mm,0.05-11.0inch (in Steel) |
| Resolution: | 0.1mm |
| Accuracy: | ±(0.5%H+0.1)mm, depends on materials and conditions |
| Units: | Metric/Imperial unit selectable |
| Power supply: | 4x1.5 AAA size (UM-4) battery 1 |
| Battery indicator: | low battery indicator |
| Operating conditions: | 0-+45°C(32°F-104°F),≤90%RH |
| Standard Delivery: | Main Unit, 8mm Probe, Coupling Oil, User Manual, Carrying Case |
Functions:
1. High resolution measurement
2. Probe automatic zero calibration for system error correction
3. Two-Point calibration function. Sound-Velocity-Calibration function
4. According to the known thickness measurement Sound-Velocity.
5. Capture the value of the minimum thickness.
6. Status indicator of the coupling and low battery.
7. Auto sleep and auto power off function to conserve battery life.
8. Humanized shape design, compact and portable, Can be used in harsh environment.
