Home /Products/Handheld Thickness Gauge/Linshang LS220H Digital Integral DFT Gauge Dry Film Thickness Meter for Metal Substrates LS220H Paint Layer Thickness Measurement

Linshang LS220H Digital Integral DFT Gauge Dry Film Thickness Meter for Metal Substrates LS220H Paint Layer Thickness Measurement

1 Piece
MOQ
$125.00(1 - 9 Pieces) $100.00(>=10 Pieces)
Price
Linshang LS220H Digital Integral DFT Gauge Dry Film Thickness Meter for Metal Substrates LS220H Paint Layer Thickness Measurement
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM
Model Number: LS220H
Power: Electronic
Probe Tip: Ruby
Measuring Principle: Fe:Hall Effect / NFe: Eddy Current
Measuring Range: 0.0-2000μm
Resolution: 0.1μm:(0μm-99.9μm) 1μm:(100μm-999μm) 0.01mm:(1.00mm-2.00mm)
Accuracy: ≤±(3% Reading+2μm)
Unit: μm / Mil
Measuring Interval: 0.5s
Minimum Measuring Area: Diameter = 25mm
Minimum Curvature: Convex:5mm / Concave:25mm
Minimum Substrate Thickness: Fe:0.2mm / NFe:0.05mm
Certification: South China National Center Of Metrology Guangdong
Basic Infomation
Certification: South China National Center of Metrology Guangdong
Model Number: LS220H
Payment & Shipping Terms
Packaging Details: Plastic Case
Product Description
Overview

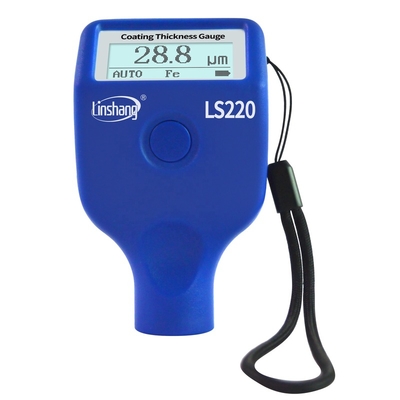

LS220H Dry Film Thickness Gauge

LS220H is an integrated high-precision coating thickness gauge, which combines the Hall effect and eddy current thickness measurement principles. This gauge can be used for coating thickness on various metal substrates.
* There are only four types of ferromagnetic metal elements at room temperature: iron, cobalt, nickel, and thorium.
* Common non-ferromagnetic metals: copper, aluminum, magnesium, zinc, chromium, etc.
* Hall effect: can be used for the measurement of non-ferromagnetic coatings on ferromagnetic metal substrates.
* Eddy current: can be used for the measurement of non-conductive coatings on non-magnetic metal substrates.
Application
Features
1. The LS220 automotive paint meter has high-sensitivity probe, fast test speed. Measurement can be completed in 0.5 seconds.
2. The LS220 car paint thickness gauge uses dual-purpose probes, which are suitable for detecting the paint thickness on iron materials and also for detecting the paint thickness on aluminum materials. It can also recognizes non-metallic substrates.
3．This automotive paint meter uses an industrial-grade LCD screen, which can be used at minus 20 ° C. No worries for outdoor use in winter of Northern China.
4．No calibration is needed just simple zero adjustment to ensure the measurement accuracy.
5．Wear-proof ruby probe tip for long-term use with strong corrosion and abrasion resistance.
6．With temperature compensation function and digitalizing analog signal function, these sensors are unsusceptible to interference.
7．"Fe", "NFe", "Fe/NFe" three measurement modes can be set for the LS220 automotive paint meter.
8．Ultra-small size for carrying around when going out for car inspection.
9．Ultra-low power consumption, coupled with the design of automatic shutdown with no operation for 3 minutes to avoid frequent battery replacement and saves energy.
Paramenters
Probe tip
Ruby
Measuring principle
Fe:Hall Effect / NFe: Eddy current
Probe type
Built-in integrated probe
Measuring range
0.0-2000μm
Resolution
0.1μm:(0μm-99.9μm); 1μm:(100μm-999μm); 0.01mm:(1.00mm-2.00mm)
Accuracy
≤±(3% reading+2μm)
Unit
μm / mil
Measuring interval
0.5s
Minimum measuring area
Diameter = 25mm
Minimum curvature
Convex:5mm / Concave:25mm
Minimum substrate thickness
Fe:0.2mm / NFe:0.05mm
Display
128×48 dot matrix LCD
Power supply
2pcs of 1.5V AAA alkaline battery
Operation temperature
-20℃-50℃
Storage temperature
-20℃-60℃
Host size
101*62*28 mm
Weight(with battery)
79 g
Structure
Packing Details
Qualification and Standards
* GB/T 4956-2003 Non-magnetic Coatings on Magnetic Substrates-Measurement of Coating Thickness-Magnetic Method
* GB/T 4957-2003 Non-conductive Coatings on Non-magnetic Basis Metals-Measurement of Coating Thickness-Eddy Current
* DIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness
* JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for Coating Thickness
