Linshang LS223 Wide Range 5000um Paint Powder Coating Thickness Gauge Dry Film Thickness Meter For Ferrous Nonferrous Substrate LS223

1 Piece
MOQ
$295.00(1 - 1 Pieces) $280.00(>=2 Pieces)
Price
Linshang LS223 Wide Range 5000um Paint Powder Coating Thickness Gauge Dry Film Thickness Meter For Ferrous Nonferrous Substrate LS223
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Model Number: LS223
Power: Electronic
Probe Tip: Ruby
Measuring Principle: Fe:Hall Effect / NFe: Eddy Current
Measuring Range: Fe: 0-5000μm NFe: 0-3000μm
Resolution: 0.1μm:(0μm-99.9μm) 1μm:(100μm-999μm) 0.01mm: (1.00mm-5.00mm)
Accuracy: ≤±(3% Reading+2μm):0-3000μm ≤±(5% Reading+2μm):3000-5000μm
Unit: μm / Mil
Measuring Interval: 0.5s
Minimum Measuring Area: Diameter = 25mm
Minimum Curvature: Convex:5mm / Concave:25mm
Minimum Substrate Thickness: Fe:0.2mm / NFe:0.05mm
Certification: South China National Center Of Metrology Guangdong
Basic Infomation
Certification: South China National Center of Metrology Guangdong
Model Number: LS223
Payment & Shipping Terms
Packaging Details: Plastic Case
Product Description
Overview

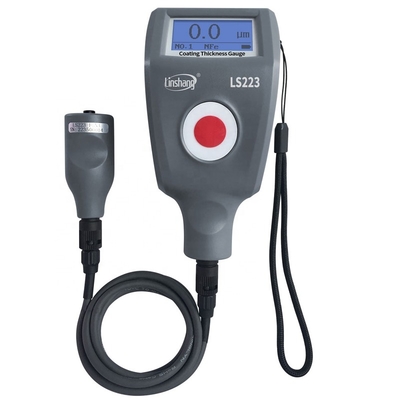

LS223 Coating Thickness Gauge

Linshang LS223 coating thickness gauge also called coating thickness tester is an instrument that separates the host from the probe. The measuring range is 5000μm and the meter can automatically identify the measuring substrate. This instrument uses both Hall Effect and eddy current measurement principles to measure the non-magnetic coating thickness on magnetic substrates and the non-conductive coating thickness on non-magnetic substrates. It is a dual-use instrument for both ferrous and non-ferrous substrates.
Application
LS223 is widely used in hardware manufacturing, shipbuilding, aerospace, mechanical equipment evaluation and other fields. This meter is especially suitable for large thickness coating inspection. The following are a few examples of practical applications of the LS223 coating thickness gauge for reference.
Features
1. No calibration is required, just simple zero adjustment for a new measurement.
2. The probe supports trigger power-on, it can automatically identify the measurement substrate and automatically switch
3. The LS223 coating thickness tester has wide measurement range and the thickest measured materials can be 5mm.
4. Adopting advanced digital probe technology to provide good measurement accuracy and measurement repeatability to ensure the inspection of Chinese national metrology.
5. The instrument has the temperature compensation function and digital function of the analog signal end, which can make the sensor signal of the coating thickness gauge more stable. The test accuracy of the instrument is not affected under the condition of large temperature changes.
6. The coating thickness meter has a real ruby probe, it has a strong resistance to corrosion and abrasion, which can extend the service life of the meter.
7. This product can trigger the start-up, applicable to ultra-thin substrate: Fe: 0.2mm / NFe: 0.05mm.
8. LS223 has three measurement modes: iron-based measurement (Fe), non-ferrous-based measurement (NFe) and automatic identification (Fe / NFe). Language (Chinese and English) and unit can be set.
Paramenters
Probe tip
Ruby fixed
Measuring principle
Fe:Hall Effect / NFe: Eddy current
Measuring range
Fe:0.0-5000μm NFe:0.0-3000μm
Resolution
0.1μm:(0μm-99.9μm); 1μm:(100μm-999μm); 0.01mm:(1.00mm-5.00mm)
Accuracy
≤±(3% reading+2μm):0-3000μm; ≤±(5% reading+2μm):3000-5000μm
Unit
μm / mil
Measuring interval
0.5s
Minimum measuring area
Ø = 25mm
Minimum curvature
Convex:5mm / Concave:25mm
Minimum substrate thickness
Fe:0.2mm / NFe:0.05mm
Display
128×64 dot matrix LCD
Power supply
2pcs of 1.5V AA alkaline battery
Range of operation temperature
0℃-50℃
Storage temperature range
-20℃-60℃
Host size
126*66*35 mm
Probe size
22*26*55 mm
Weight(with battery)
160 g
Qualification and Standards
* GB/T 4956-2003 Non-magnetic Coatings on Magnetic Substrates-Measurement of Coating Thickness-Magnetic Method
* GB/T 4957-2003 Non-conductive Coatings on Non-magnetic Basis Metals-Measurement of Coating Thickness-Eddy Current
* DIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness
* JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for Coating Thickness
Recommend Products
Company Profile
Shenzhen Linshang Technology Co., Ltd. (www.linshangtech.com) was established on June 16, 2008. The company adheres to independent design, research and development, production and sales of various measuring instruments. Builds its own brand. "Linshang" trademark successfully in 2010, At present, company have obtained 17 national patents and national high-tech enterprise certificates.
At present, the company's instrument are mainly divided into four categories: solar film measurement, optical transmittance, ultraviolet measurement, gloss and coating thickness measurement. Products include: Solar Film Transmission Meter, Spectrum Transmission Meter, Light Transmittance Meter, UV Energy Meter, UV Light Meter, Glass Thickness Meter, Gloss meter, Coating thickness gauge, Vacuum coating online thickness monitor.
Trademark and Knowledge Product Management System
National High-tech Enterprise Certificate
Software Copyright Registration Certificates
17 National Patent Certificates
CE Certificates for Multiple Products
FAQ
Q1: What’s your warranty?
A1: We provide 1 year warranty.

Q2: May I buy sample from you?
A2: Yes, you are welcome to place sample order to test our superior quality and service.

Q3: What about the quality of your products?
A3: We provide unrivaled quality-very rigorous testing process for incoming quality control, input process quality control, and final quality control for every piece. We follow QC test procedure to ensure the quality.

Q4: Do you have after-sales service?
A9: Yes, our instrument have professional After-sales Dept. If you have any technical problem or question with our goods, welcome to contact us.

Q5: Are you just trading company or facture?
A5: We are professional inspection instruments manufacturer, we can support you with the most competitive price, unrivaled quality and services.
