Features

Specifications

Warranty: 1 Year

Product Name: Thickness Gauge

Application: Thickness Gauge For Coating And Clad Layer

Power: Two 1.5V AAA Batteries

Range: 0-1300um

Accuracy: Â±3% +2um (0-1300um)

Operating Temperature: 0-45â„ƒ

Storage Temperature: -10-50â„ƒ

Storage Humidity: 0-90%RH

Size: 112*51*28mm

Weight: 80g Without Battery

Basic Infomation

Payment & Shipping Terms

Packaging Details: color box+carton box

Supply Ability: 100000 Box/Boxes per Week

Product Description

Customer reviews

Products Description

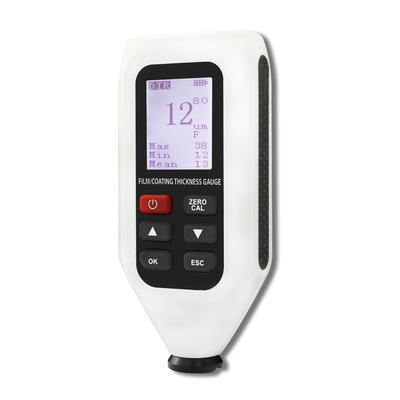

HTI HT-128 high precision digital electronic film coating car paint thickness gauge for coating and clad layer

Performance lndex
Measurement mode			single and continui
Unit			um, mm
Range			0-1300um
Resolution			1um(0-999um), 0.01mm(≧1000um)
Accuracy			± 3% +2um (0-1300um)
Auto power off			3min(no key operation)
Working condition
Power supply			two 1.5V AAA batteries
Operating temperature			0-45℃(no condensation and no strong magnetic field)
Accuracy			±0.6℃/±0.9℉(0-50℃/32-122℉), other ±1.2℃
Operating humidity			0-90%RH non-condensing
Storage temperature			-10~50℃（14℉~122℉）
Storage humidity			0-90%RH non-condensing
Requirements for substrate
Substrate thickness			>0.5mm
Curvature radius of conves surface			>1.5mm
Curvature radius of concave surface			>25mm
Measurement area diameter			>6mm
Others
Display			LCD display with back light
Size			1125128mm
Weight			80g(battery not inclided)
Accessories
One piece of standard aluminum substrate
One piece of standard iron substrate
Standard foil: one piece of 50um, 100um, 250um, 500um, 1000um respectively
Two 1.5V AAA batteries
USB data line
Instruction for use

SALES AND SERVICE NETWORK
