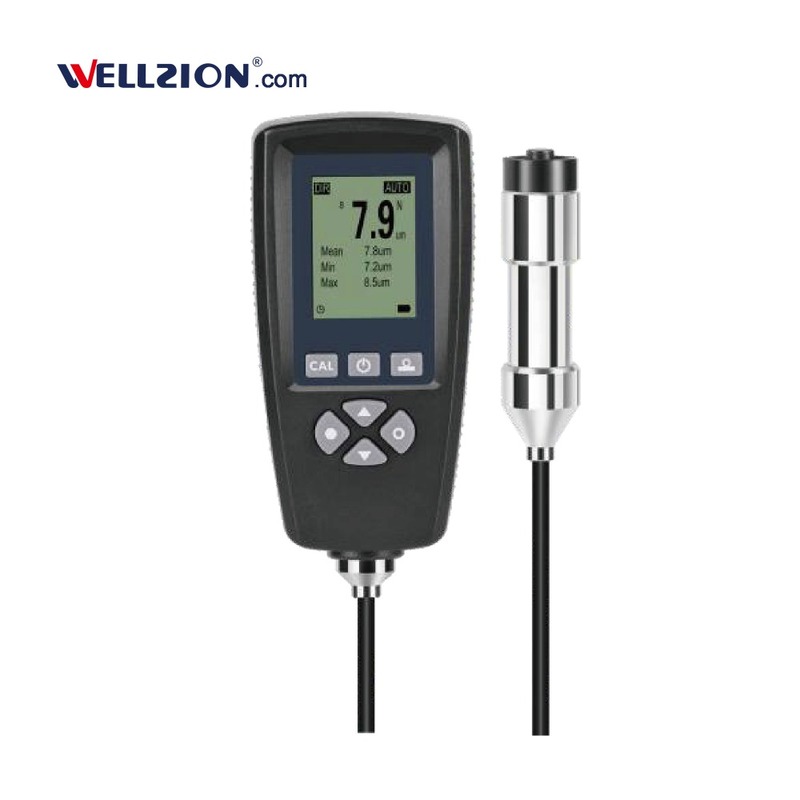

EC-770XE,External Probe Max to 5000um Coating Thickness Gauge
This gauge can measure up to 5000um coating thickness. It is used for non-destructive coating thickness measurement of non-magnetic coatings, e.g. paint, enamel, chrome on steel, and insulating coatings, e.g. paint and anodizing coatings on non-ferrous metals.
| Model | EC-770 | EC-770S | EC-770X | EC-770XE |
| Measuring Range | 0~2000μm | 0~2000μm | Decided by Probe | Decided by Probe |
| Accuracy | ±(2.5%+1μm) | ±(2%+1μm) | ±(2%+1μm) | ±(2%+1μm) |
| Probe | Internal | Internal | Internal | External |
| Red Backlight Alert | √ | √ | √ | √ |
| LCD Rotated 180° | √ | √ | √ | √ |
| Auto Power Off | √ | √ | √ | √ |
| USB Interface | √ | √ | √ | √ |
| Weight | 80g | 80g | 80g | 142g |
User-friendly features
| Probe type | External probe |
| Measuring principle | Fe: Magnetic induction ; NFe: Eddy currents |
| Measuring range | Decided by probe |
| Accuracy | ±(2%+1μm) |
| Resolution | 0.1μm(0~99.9μm), 1μm(≥100μm) |
| Unit | μm, mm, mils |
| Readings memory | 2000 readings |
| Display | 128*128 dot matrix LCD display |
| Operation environment | Temperature: -10~50°C |
| Storage environment | Temperature: -10~60°C |
| Power supply | Two 1.5V AAA batteries |
| Dimensions | 113mm*53mm*24mm |
| Weight | 80g(int. probe) / 142g(ext.probe) |
| Accessories | Range | Accuracy |
| External probe, F and N | 0~2000μm | ±(2%+1μm) |
| External probe, F and N | 0~2500μm | ±(2%+1μm) |
| External probe, F and N | 0~3000μm | ±(2%+1μm) |
| External probe, F and N | F: 0~5000μm; N: 0~3000μm | ±(2%+1μm) |
