Home /Products/Material Thickness Gauge/Factory Wholesale NDT Ultrasonic Ultrasonic Tester Digital Thickness Gauge Ultrasonic Leak Detector HS F91

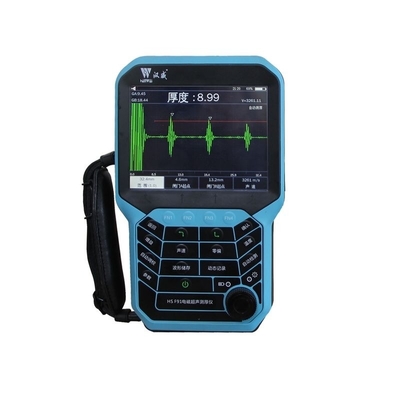

Factory Wholesale NDT Ultrasonic Ultrasonic Tester Digital Thickness Gauge Ultrasonic Leak Detector HS F91

1 piece
MOQ
$11,875.00(1 - 4 pieces) $7,812.50(>=5 pieces)
Price
Factory Wholesale NDT Ultrasonic Ultrasonic Tester Digital Thickness Gauge Ultrasonic Leak Detector HS F91
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM
Model Number: HS F91
Power: Other
Sampling Frequency: 400MHz / 10bit
Bandwidth: 4.5MHz
Excitation Voltage: 1000V
Detection Range: 1mm ~ 400mm
Measurement Accuracy: ± 0.01mm
Lifting Height: 3mm
Excitation Method: Permanent Magnet
MOQ: 1PCS
Vertical Linear Error: <3%
Horizontal Linear Error: <0.1%
Basic Infomation
Model Number: HS F91
Payment & Shipping Terms
Product Description
Products Description
Detection temperature of normal temperature probe
-25 ℃ -200 ℃
High temperature probe detection temperature
200 ℃ -600 ℃
Display
bright true color 640 × 480 daylight readable LCD,Maximum A-scan size 115.2 × 86.4
Gain
0-80dB (adjustment accuracy: 0.1dB / 2dB / 6dB)
Equivalent input noise
<80 × 10-9V/Hz1/2
Attenuator accuracy
<± 1dB / 12dB
Vertical linear error
<3%
Horizontal linear error
＜0.1%
Detection method
positive, negative detection, full detection and radio frequency
Battery
7.4V DC, lithium battery, continuous working for 8 hours
Size
220mm in length × 125mm in width × 40mm in thickness
Machine weight
1.35kg
