Home /Products/Material Thickness Gauge/Hot Selling High Quality Electromagnetic Ultrasonic Test Wall Thickness Gauge Crack Metal Detector HS F1

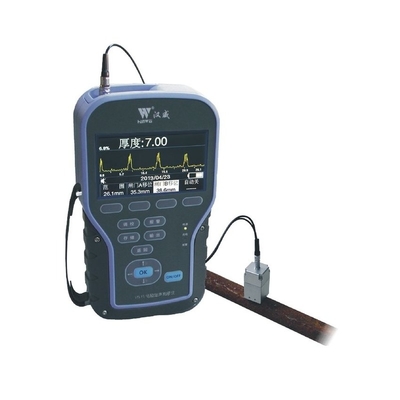

Hot Selling High Quality Electromagnetic Ultrasonic Test Wall Thickness Gauge Crack Metal Detector HS F1

1 piece
MOQ
$7,500.00(1 - 4 pieces) $4,687.50(>=5 pieces)
Price
Hot Selling High Quality Electromagnetic Ultrasonic Test Wall Thickness Gauge Crack Metal Detector HS F1
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM
Model Number: HS F1
Power: Other
Display: 4.3 "TFT True Color Display
Sampling Frequency: 10bit / 200MHz
Bandwidth: 500kHz-8MHz
Excitation Voltage: 600V
Detection Range: 1mm ~ 200mm (expandable To 400mm)
Measurement Accuracy: 0.1mm
Lifting Height: 2mm
Excitation Method: Permanent Magnet (customizable Electromagnetic Method)
Attenuator Accuracy: <± 1dB / 12dB
Vertical Linear Error: <3%
Basic Infomation
Model Number: HS F1
Payment & Shipping Terms
Product Description
Products Description
Detection temperature of normal temperature probe
-25 ℃ -200 ℃
High temperature probe detection temperature
200 ℃ -600 ℃
Detection range
1mm ~ 200mm (expandable to 400mm)
Excitation method
permanent magnet (customizable electromagnetic method)
Gain
0-80dB (adjustment accuracy: 0.1dB / 2dB / 6dB)
Equivalent input noise
<80 × 10-9V/Hz1/2
Attenuator accuracy
<± 1dB / 12dB
Vertical linear error
<3%
Horizontal linear error
＜0.2%
Detection method
positive, negative detection, full detection and radio frequency
Battery
7.4V DC, lithium battery, continuous working for 4 hours
Size
220mm in length × 125mm in width × 40mm in thickness
Machine weight
0.75kg
