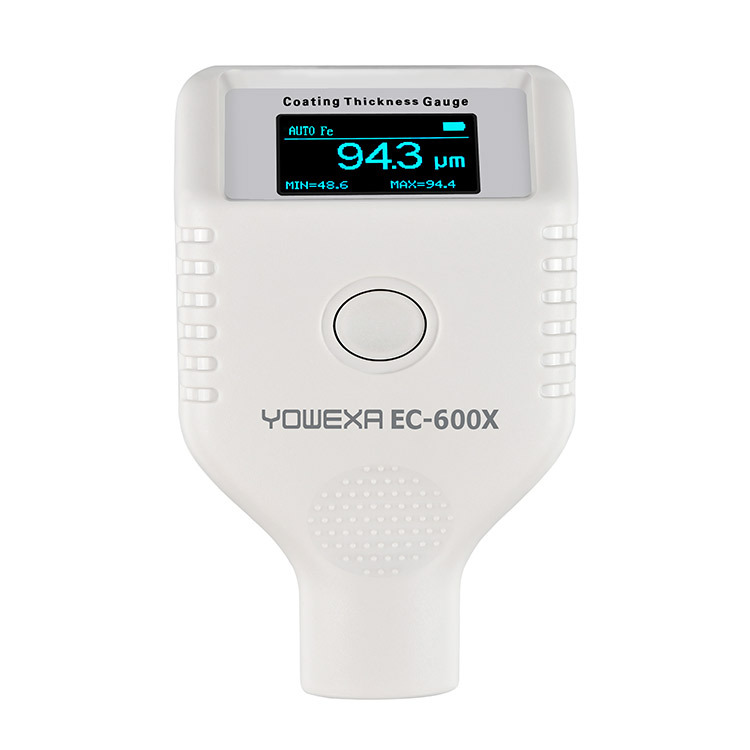

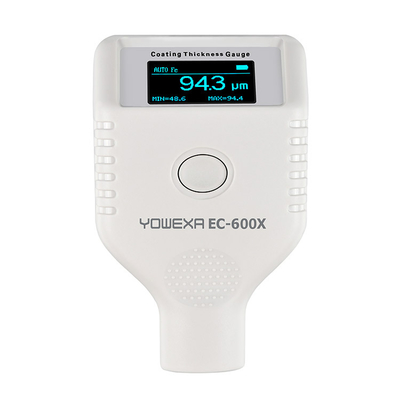

EC-600X Low Temperature Resistant Paint Thickness Gauge
| Model | EC-600 | EC-600S | EC-600SE | EC-600X |
| Probe position | Internal | External | Internal | |
| Measuring principle | Fe: Magnetic induction principle; NFe: Eddy currents principle | |||
| Measuring range | 0~2000μm | |||
| Accuracy | ±(3%+1μm) | ±(2%+1μm) | ±(2.5%+2μm) | |
| Resolution | 0.1μm(0~100μm); 1μm(>100μm) | |||
| Unit | μm, mm, mil | |||
| Calibration | Zero calibration | |||
| Probe Triggering force | 0.5~1.2N | |||
| Minimum radius of curvature of substrate | Convex 5mm | |||
| Concave 25mm | ||||
| Minimum measurement area | Diameter 15mm | |||
| Minimum substrate thickness | Fe: 0.30mm | Fe: 0.20mm | Fe: 0.30mm | |
| NFe: 0.05mm | NFe: 0.03mm | NFe: 0.05mm | ||
| Response time | About 0.3 seconds (upgrade) | |||
| Display | Dot matrix LCD screen | Dot matrix OLED screen | ||
| Bluetooth & APP | N | Y | N | |
| Operating environment | -10~+50℃ | -40~+50℃ | ||
| Storage environment | -20~+60℃ | -50~+60℃ | ||
| Power supply | Two 1.5 V AAA Alkaline battery; Two 1.2V AAA rechargeable battery | |||
| Protection class | IP40 | |||
| Dimension | 103*62*27mm | Main Device: 103*62*27mm | 103*62*27mm | |
| Cable: Φ3.5*1000mm | ||||
| Probe: Φ17*67mm | ||||
| Material | ABS | Main Device: ABS | ABS | |
| Probe: Stainless Steel | ||||
| Weight | About 57g | About 112g | About 62g | |
| (not including battery) | (not including battery) | (not including battery) | ||
| Standard | CE,ROHS,ISO 2178,2360,GB/T 4956-2003,4957-2003,JJG-818-2005 | |||
EC-600X uses an OLED display. Under the condition of using low temperature resistant battery, the extreme working temperature of EC-600X can reach -50ºC.
Mainly used for non-destructive thickness measurement for the coatings of paint or galvanized layers on iron and stainless steel, paint or plastic film on aluminum and copper, etc.
|
FEATURES: |
APPLICATION: |
YOWEXA, established in 2010, is a high-tech enterprise with 3 holding subsidiaries and a production area of 1,500 square meters, focusing on the R&D, manufacturing, sales, and solutions of precision measuring instruments and sensors. There are more than 30 R&D personnel and dozens of independent intellectual property rights.
