Home /Products/Steel Thickness Tester/Coating Thickness Gauge 0.1micron/0-1250 Car Paint Film Thickness Tester Measuring Manual FE/NFE Paint Film Thickness Tester 150*50.5* 29 millimeters

Coating Thickness Gauge 0.1micron/0-1250 Car Paint Film Thickness Tester Measuring Manual FE/NFE Paint Film Thickness Tester 150*50.5* 29 millimeters

1 unit
MOQ
Coating Thickness Gauge 0.1micron/0-1250 Car Paint Film Thickness Tester Measuring Manual FE/NFE Paint Film Thickness Tester 150*50.5* 29 millimeters
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Type: Car Coating Thickness Gauge
Customized Support: OEM, ODM
Model Number: ETG12F1
Product Name: Car Coating Thickness Gauge ETG12F1
Test Method: Magnetic Induction
Data Memory: 500 Readings
Color: Gray
Display Resolution: 128*64 Dot Matrix LCD
Resolution: 0~999 μm:0.1μm ;≥1000μm:1μm
Working Environment: Temperature: 0°C~+40°C; Humidity: 20%~90%
Size: 150 * 50.5 * 29 MM
Weight: 110 G
Certification: CE
Basic Infomation
Certification: CE
Model Number: ETG12F1
Payment & Shipping Terms
Product Description
Features

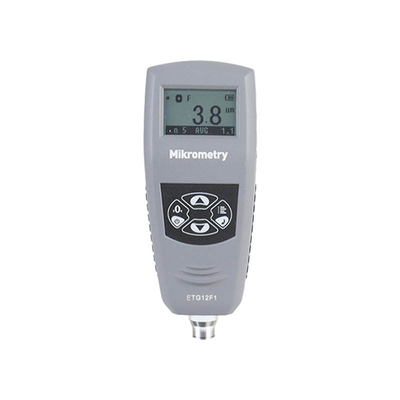

The car coating thickness gauge ETG12F1 is a professional tool and at the same time easy-to-use device that is used for accurate measurements of coatings or coatings on various metal surfaces. High dust, gas pollution, changes in humidity and temperature will not stop the operation of this device. This tester is designed to not-destructively measure the thickness of non-magnetic coatings(including paint, enamel, plastic, epoxy, etc)on iron or steel.

Features:

* Very compact size with integrated probe
* Magnetic induction method (ISO 2178, ASTM D7091), measurement of non-magnetic coatings on magnetic substrates
* Data memory is up to 500 readings
* Ready to measure immediately without calibration
* Easy to perform zero-point correction provides correct measurement results for measuring applications with little changes in
shape and substrate material
* The one-point calibration function allows for an adaption in cases of severe changes in shape or substrate material and
enables high-precision measurements in selected measurement ranges
* Statistic function allows for evaluation of a measurement series and display of the most significant characteristic
statistical values.
Product Description
Test Method
Magnetic induction
Measuring Range
0-1250μm (0~50 mil)
Resolution
0~999 μm:0.1μm
≥1000μm：1μm
Accuracy
0~100：±2.0μm
101 ~ 1250μm: ≤ 2.5 %
Data Memory
500 readings
Display
Graphic LCD with backlight
Operating Temperature
0 ~ 50°C
Dimension
150X50.5X29mm
Weight
170g
Accessories
Thickness gauge, Substrate, Certification foils set, Charger
User’s manual, Manufacturer’s certificate.
Our Advantage
Company Profile
Payment & Shipping
FAQ
Q1. You are manufacturer or trading company?
A: We are manufacturer and exporter, our price is reasonable. Also we have great sales team providing professional service.

Q2. Do you provide OEM/ODM services?
A: We can do OEM/ODM.

Q3. How does your factory do regarding quality control?
A: Quality is priority. we always test one by one before produce or finished. We have got the CE, RoHS, so don't worry about quality
