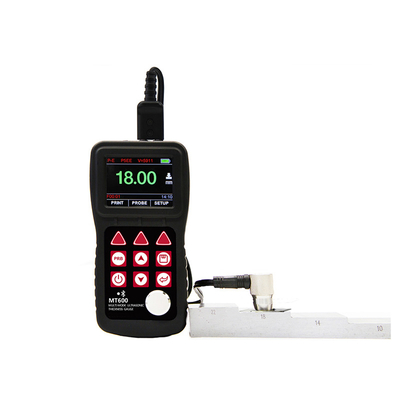

DGT-MT600 multi-mode ultrasonic thickness gauge is a upgraded product. We pay more attention to user experience and innovative features such as visual experience, protection grade, automatic alarm and etc..Color TFT display (320×240 TFT LCD) with adjustable backlight, allow the user to work at worksites with low visibility. IP65 degree of protection, can effectively prevent harsh field environments of oil, dust and other corrosion. It also has voice broadcast function, automatic alarm., 0.1mm/0.01mm/0.001mm resolution, bluetooth communication and penetrate the coating mode and normal mode functions and etc.. It can measure the substrate thickness without the need to dispose of coating directly. Its unique non-destructive testing performance provide the perfect solution for the thickness testing of closed Pipes, containers, etc. It is widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields because of monitoring corrosion thinning degree of various pipes and pressure vessels.It can also be used for precise measurement of sheet metal and machined parts. This professional precision instrument is to improve production efficiency and qualified rate, cost saving.
UT Thickness Gauge Testing DGT-MT600 Muti-mode Ultrasonic Equipment | ||
Display | 320x240 TFT color LCD screen, adjustable backlight brightness | |
Support two modes for thickness measurement Pulse-Echo mode: (0.65～600)mm Echo-Echo mode: (3.0～100)mm | ||
Sound Velocity Range | (1000～9999)m/s | |
Accuracy | ±0.04mm（≤10mm）； ±0.4%H(>10mm)； | |
Resolution | 0.1mm/0.01mm/0.001mm switchable | |
Memory | Memory for up to 100 files (up to 100 values for each file) of stored values | |
Measurement Frequency | Single-point measurements per second 7 times, 16 times a second scan mode | |
Data Printing | You can use portable bluetooth thermal printer to print measurement reports | |
Power Source | Two “AA” Size, 1.5 volt alkaline batteries，operating time is more than 30 hours (ELbacklight off) | |
Communication | Support bluetooth and USB2.0 communication, the host program can be updated online. | |
Dimensions | 150mm × 76mm × 38mm | |
Net Weight | 295g | |
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Freely provide project designing, process designing, choosing suitable equipment for you.
* The quality guarantee period of our machine is 12 months.
* Within the quality guarantee period, free parts replacement and corresponding service are available.
Q: How long will you give customer the reply? | ||||||
A: We will contact you soon. The latest will not exceed 10 hours. | ||||||
Q: How about the quality of the products? | ||||||
A: We have the certificates of ISO and CE. We can send our certificates to you for your reference. | ||||||
Q: What is the price of the product? | ||||||
A: As we all believe the quality is the most important. We will provide the best quality machines with best price. | ||||||
Q: How about delivery time? | ||||||
A: Most of our products are in stock, after testing to your delivery, delivery time is about 5-7 days. | ||||||
Q: Can we visit your factory? | ||||||
A: Of course, please feel free to visit our factory. | ||||||
Q: How long is the warranty? | ||||||
A: 12 months. Warranty period free maintenance. | ||||||
