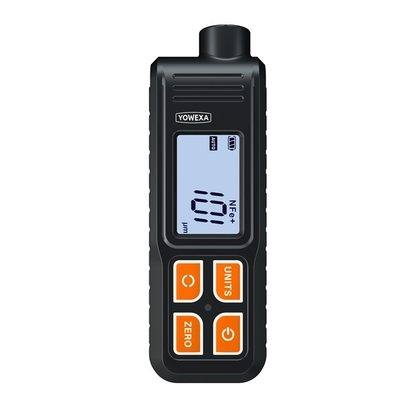

EC-370A Portable Paint Coating Thickness Gauge
| Model | EC-370A | EC-370B |
| Probe type | Internal | |
| Measuring principle | Fe: Magnetic induction;NFe: Eddy currents | |
| Measuring range | 0~2000μm | |
| Accuracy | ±(3%+1μm) | |
| Resolution | 0.1μm(0~100μm);1μm(>100μm) | |
| Unit | μm,mm,mil | |
| Iron putty power | 0~1000μm | |
| identification range | ||
| Iron-galvanized substrate | 3~500μm | |
| recognition range | ||
| User calibration method | Zero calibration | |
| Probe triggering force | 0.5~1.2N | |
| Minimum radius of | Convex 5mm;Concave 25mm | |
| curvature of substrate | ||
| Minimum measurement area | Diameter 15mm | |
| Minimum substrate thickness | Fe:0.30mm | |
| NFe:0.05mm | ||
| Maximum measuring speed | 2 readings/sec | |
| Display | black and white segment LCD screen | color segment LCD screen |
| Operating environment | -10~50℃ | |
| Storage environment | -20~60℃ | |
| Power supply | 2 pcs AAA 1.5V alkaline batteries;2 pcs AAA 1.2V rechargeable batteries | |
| Protection class | IP40 | |
| Dimensions | 134*44*27mm | |
| Case material | ABS | |
| Weight | About 70g(without batteries) | |
Description:
EC-370A and EC-370B thickness gauges have built-in magnetic induction and eddy current effect integrated probes, which can non-destructively measure the thickness of non-conductive coatings on metal surfaces and non-ferromagnetic metal coatings on ferromagnetic metals (such as iron, nickel, and cobalt).
Specific uses include measuring the thickness of the paint or galvanized layer on the surface of iron and stainless steel and measuring the thickness of the paint or plastic film on the surface of aluminum and copper.
Features:
• Ruby probe
• Support continuous measurement
• Zero calibration function
• Iron powder putty recognition
• Recognition of iron-galvanized substrate
• Response time is less than 0.5 seconds
• Indicator light
• Manually rotate the screen
• A variety of shell colors are available
• Automatic shut-down
• Battery protection
