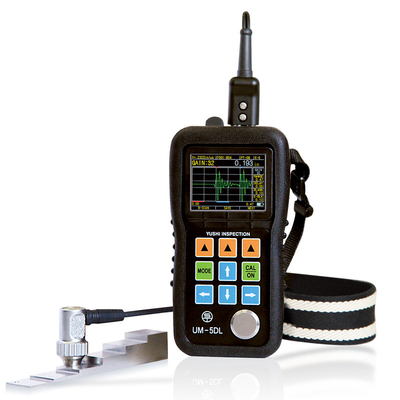

1. Characteristics of Color Screen Ultrasonic Thickness Gauge UM-5DL
Users can see the color waveform of the ultrasonic sound (or A-scan) on the screen directly, which is quite important to check the correctness of the testing results.Users can find the causes easily through the A-scan. And then through adjusting the three parameters of GAIN, BLACKING, GATE, the true readings will come out,
UM-5 series thickness gauge possesses the time base B-scan function. Move the probe along the workpiece surface for observing the underside contour of the workpiece.It could be automatically capture a minimum value of the B-scan image, and indicate the position of the minimum by a red triangle. User can see any point thickness value of the B-scan image by moving the pointer.
2. Instrument Parameters
| Display Type | 2.4”color OLED, 320 X 240 pixels, contrast 10,000:1 |
| Operating Principle | Pulse echo with dual element transducers |
| Measuring Range | 0.50mm to 508mm(0.02” to 20.00"), depending on material, probe and surface condition |
| Measuring Resolution | Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01") |
| Units | Inch or Millimeter |
| Rectify Modes | RF+, RF-, HALF+, HALF-, FULL |
| Display Mode | Normal, Minimum / Maximum capture, DIFF/RR% A-Scan B-Scan |
| V-Path Correction | Automatic |
| Update Rate | Selectable 4Hz, 8Hz, 16Hz |
| Material Velocity Range | 500 to 9999m/s (0.0197 to 0.3937in/us) |
| Languages | Chinese, English, Germany, French, Japanese |
| Alarm Settings | Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm |
| Power Requirements | 2 AA size batteries |
| Operating Time | Approximately 40 hours |
| Instrument Shut-off | Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity |
| Operating Temperature | -10°C to +50°C (+10°F to +120°F) |
| Size | 153mm X 76mm X 37mm(H X W X D) |
| Weight | 280g including batteries |
Yushi Ultrasonic Thickness Gauge UM-5 Series have been certified by CE.
1. Standard Configuration:
| Name | Quantity |
| Main Unit UM-5DL | 1 |
| Probe TC510 | 1 |
| Carrying Case | 1 |
| USB Cable | 1 |
| Software CD | 1 |
| Operating Manual | 1 |
2. Optional Configuration:
High Temperature Probe, Cast Iron Probe, Small Probe, Mini Probe, Probe Cable, Stepped Calibration Block, Rubber Sheath.
3. Shipping
We have cooperated with many transport conpanies, and will try our best to do the delivery follow your required transport company.
1. One year warranty of the main unit;
2. Each instrument has been calibrated by 34 standard test blocks before delivery to ensure the accuracy of the measurement;
3. Three factoty examinations before the instrument leave the factory and provide the factory inspection report.
