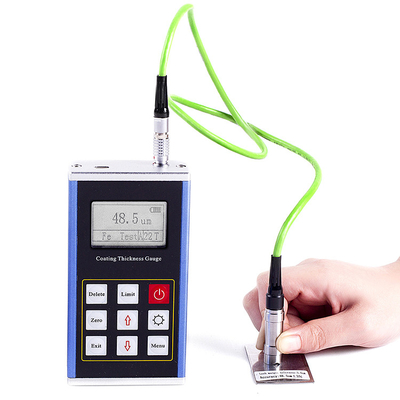

Functions & Feature:
High quality metal sheel.
With back-light.
Switch off automatically or manually.
Measuring Materials
Magnetic Induction (Fe):
Measuring the thickness of Non-magnetic coating on magnetic metal substrate, such as aluminum, chromium, copper, zinc, rubber, paint on the base of steel, iron, alloy and magnetic steel .
Eddy Current (NFe):
Measuring the thickness of Non-conductive coating on non-magnetic metal substrate, such as rubber, plastic, paint, oxide on the base of aluminum, copper, zinc, tin.
Technical Specification
| Model No. | Leeb230 | Leeb231 | Leeb232 | |
| Measuring principle | Fe | NFe | Fe & NFe | |
| Measuring range (µm) | 0~1250μm | |||
| Probe | Changeable | |||
| Shell | Metal | |||
| Accuracy | ±[(1~3%)H+1] μm | |||
| H refers to the thickness of testing piece | ||||
| Minimum resolution (µm) | 0.1μm | |||
| Min curvature of the min area (mm) | Convex1.5 Concave9 | |||
| Diameter of the min area (mm) | Φ7 | |||
| Critical thickness of substrate (mm) | 0.5 | |||
| Memory | 300 groups measured data | |||
| Dimensions | 115×70×30mm | |||
| Power supply | AAA Alkaline battery | |||
| Standard configuration | Main Machine,5 calibration specimens (48.5mm,99.8mm,249mm,513mm | |||
| 1024mm),1 probe & substrate (Two probes & substrates for Leeb232). | ||||
| Optional Accessories | Probes,Specimens | |||
