Home /Products/Leather Thickness Gauge/GTS8102 GTS8102 Bluetooth Interconnect Coating Thickness Gauge

GTS8102 GTS8102 Bluetooth Interconnect Coating Thickness Gauge

1 Set
MOQ
GTS8102 GTS8102 Bluetooth Interconnect Coating Thickness Gauge
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Model Number: GTS8102
Power Supply: USB 5V Or Two AA Batteries
Data Output: USB And Bluetooth
HMI: Button, Backlight Dot Matrix Screen, Indicator Light, Buzzer
Upper Machine Software: Windows, Android App, ISO App
Test Range: 0~1500μm
Resolution: 0.1μm(0~99.9μm),1μm(100~1500μm)
The Thinnest Basal: 0.4mm
Min. Measured Area: 10x10mm
Min. Surface: Convex 5mm, Concave 5mm
Net Weight: 97G Without Battery
Basic Infomation
Model Number: GTS8102
Payment & Shipping Terms
Packaging Details: Selling Units: Single Item Single gross weight:1KG Package Type: Packing in box for export
Product Description
Product Description
Specification

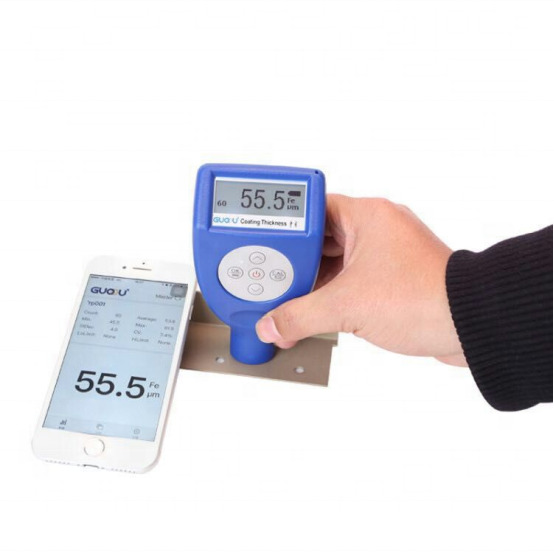

This instrument is a magnetic, eddy current integrated portable coating thickness measuring instrument, it can quickly, no damage,precision coating thickness measurement.
Measure the thickness of a non-conductive coating on a non-magnetic substrate and a non-magnetic coating on a magnetic substrate
The FE probe can detect all non-magnetic coating thickness, such as paint on steel, iron, powder coating, plastic, porcelain,chromium, copper, zinc, etc
NFE probe detects all insulation coating thicknesses, such as paint, plastic, porcelain, etc. These coatings must be applied to non-magnetic metal substrates such as aluminum, copper, brass, or stainless steel
Power supply
USB 5V or two AA batteries
Data output
USB and bluetooth
HMI
Button, backlight dot matrix screen, indicator light, buzzer
Upper Machine Software
Windows, Android App, iSO App
Test range
0~1500μm
Resolution
0.1μm(0~99.9μm),1μm(100~1500μm)
The thinnest basal
0.4mm
Min. measured area
10x10mm
Min. surface
convex 5mm, concave 5mm
Net weight
97G without battery
Packing & Delivery
Selling Units: Single Item Single gross weight:1KG Package Type: Packing in box for export
Company Profile
FAQ
1. who are we?
We are based in Shandong, China, start from 2015,sell to Domestic Market(60.00%),Southeast Asia(10.00%),North America(5.00%),South Asia(5.00%),Northern Europe(5.00%),Eastern Asia(5.00%),South America(5.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
metallographic grinding and polishing machine,metallographic cutting machine,metallographic mounting press,brinell hardness tester,rockwell hardness tester

4. why should you buy from us not from other suppliers?
Direct factory operation; Experienced professional R&D team; Complete range of equipments; Products can be customized according to customer requirments

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,Express Delivery；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
