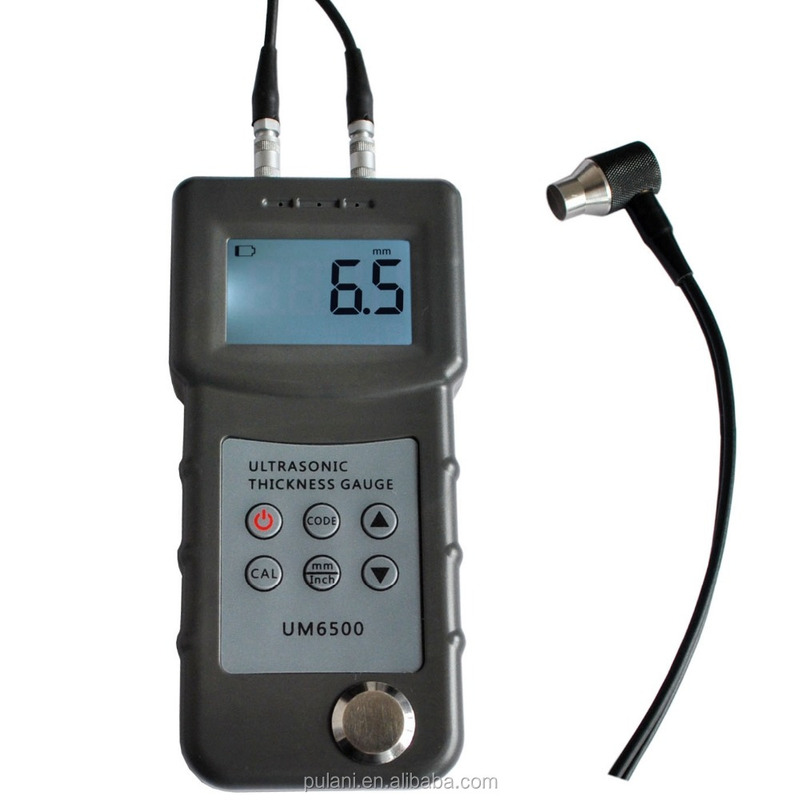

Digital protable electronic ultrasonic thickness gauges width measuring instruments
Introducton & Application:
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Materials measured: only 11 types of materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron.
Specifications:
| Display: | 4.5 digits LCD with EL backlight |
| Operating principle: | ULTROSONIC |
| Measuring range (metric/imperial): | 1.0 - 200mm,0.05-8inch (in Steel) |
| Resolution: | 0.1mm |
| Accuracy: | ±(0.5%H+0.1)mm, depends on materials and conditions |
| Units: | Metric/Imperial unit selectable |
| Power supply: | 4x1.5 AAA size (UM-4) battery 1 |
| Battery indicator: | low battery indicator |
| Operating conditions: | 0-+45°C(32°F-104°F),≤90%RH |
| Standard Delivery: | Main Unit, 8mm Probe, Coupling Oil, User Manual, Carrying Case |
Functions:
High resolution measurement
Probe automatic zero calibration for system error correction
Capture the value of the minimum thickness.
Status indicator of the coupling and low battery.
Auto sleep and auto power off function to conserve battery life.
Humanized shape design, compact and portable, Can be used in harsh environment.
