Home /Products/Pipe Thickness Gauge/ETC-098 High Precision Ultrasonic Steel Thickness Gauge Tube Gauge Thickness ETC-098

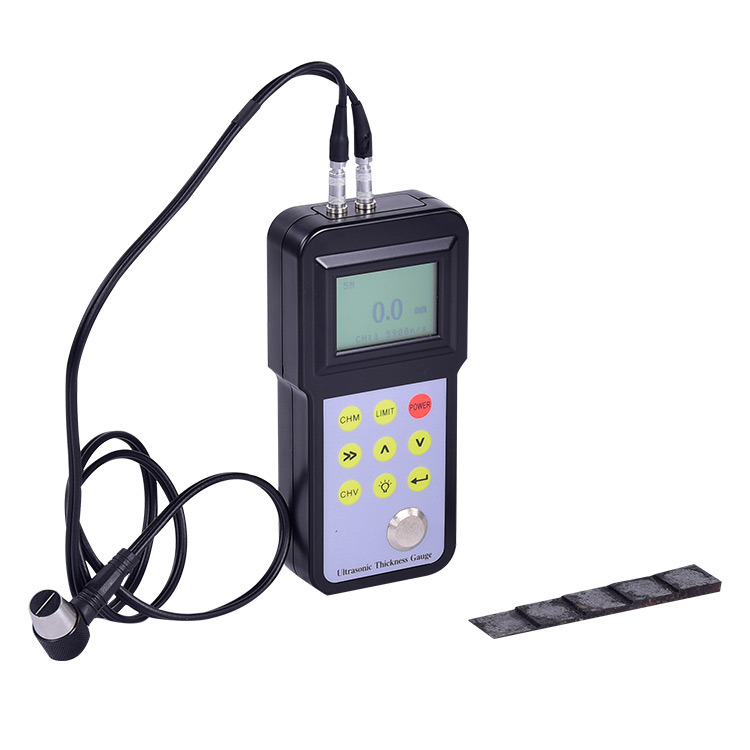

ETC-098 High Precision Ultrasonic Steel Thickness Gauge Tube Gauge Thickness ETC-098

1 Piece
MOQ
$148.00(1 - 9 Pieces) $138.00(10 - 19 Pieces) $128.00(>=20 Pieces)
Price
ETC-098 High Precision Ultrasonic Steel Thickness Gauge Tube Gauge Thickness ETC-098
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: ETC-098
Color: Black
Demension: 150*73*32(mm)
Weight: 400g
Measure Range: 0.75~300mm
Power: 1.5V(AA)*2
Probe: Replaceable
Sound Velocity Rang: 1000m/s-9999m/s
Accuracy: ±(1%H+0.1)mm
Basic Infomation
Model Number: ETC-098
Payment & Shipping Terms
Packaging Details: 1set: 250*70*210(mm) 10sets:41*48*29(cm) 20sets:77*78*29(cm),
Supply Ability: 100 Piece/Pieces per Week
Product Description

ETC-098 High Precision Ultrasonic Thickness Gauge steel tube gauge thickness
Product Description

1. Features

The instrumentis based on the principle of ultrasonic measurement.It can measure thickness of material which allows the ultrasonic wave penetrating with constant speed and reflecting from the back side.With used in many areas of industry,ETC-098 has precise measurement,eg petroleum,metallurgy,shipbuilding,aviation,spacefight and so on.It can measure on various type of raw material and component parts.Applicable to monitor pipe and pressure ressel.

2.Technical specifications

Rang:0.75-300.0mm(determined by probe)
Accuracy:±(1%H+0.1)mm
Lower limit of pipe (steel):φ20mm×3.0mm(5MHz)
φ15mm×2.0mm(10MHz)
sound velocity rang:1000m/s-9999m/s
To measure velocity by thickness:
Rang:1000m/s-9999m/s
Thickness of the measured sample:≥20mm(Accuracy: ±5%)
Temperature:0°C-40°C
Power supply: DC1.5V×2
Dimensions:150mm×73mm×32mm
Weight:400g

3. Basic delivery

Carrying case...............1pc
Main unit......................1pc
Manual.........................1pc
5MHz probe................1pc
Couplant.......................1pc
Cleaning cloth................1pc
