2020 New Yunombo Digital Car Paint Thickness Meter Film Thickness Tester Automatic ABS Coating Thickness Gauge With LED Flashlight

2020 New Yunombo YNB-220 Digital Auto Car Paint Thickness Meter Film Thickness Tester Coating Thickness Gauge with LED Flashlight

Introduction:

This device can make a quick and effective measurement of the thickness of the non- metallic coating on the nonmagnetic metal substrate and the thickness of the nonmagnetic coating of the magnetic metal substrate, it can also automatically identify the magnetic metal substrate and nonmagnetic metal substrate. It is widely used in the inspection field of automobile manufacturing, metal processing industry,chemical industry, commodity inspection, etc.

Function:

1.Measuring the thickness of non-magnetic coating on the magnetic metal substrate.

2.Measuring the thickness of the non-metallic coating on the non-magnetic metal substrate.

3.Automatically identifying the non-magnetic metal substrate and magnetic metal substrate.

4.The instrument can automatically recognize whether the magnetic metal substrate is covered with non-magnetic metal coating (usually zinc), and this function is optional.

5.Single measurement, continuous measurement and differential measurement available.

6. With maximum, minimum and average value viewing function.

7.Zero-point calibration, 2-point calibration and basic calibration available.

8.Metric and imperial units of measurement optional.

9.LCD backlight.

10. LED lighting.

11. Automatic shutdown.

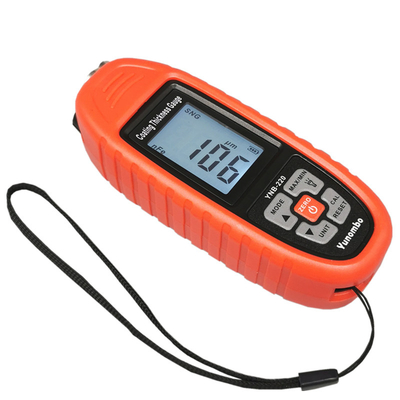

Product Overview:


2.LCD display
3.Back button and power on/off button
4.Confirm button
5.Up button
6.Down button
7.Test probe
8.Nameplate on instrument’s back

Package Include:

1 X Coating Thickness Gauge
1 X Iron Clibration Substrate
1 X Aluminum Clibration Substrate
6 X Calibraion Films(50um,100um,250um,500um,1000um,1500um)
1 X English&RussianUser Guide

1 X Rubber Case9
1 X Protective Case

1 X Lanyard
1 X Retail Box

Specification:

Product Photos:
