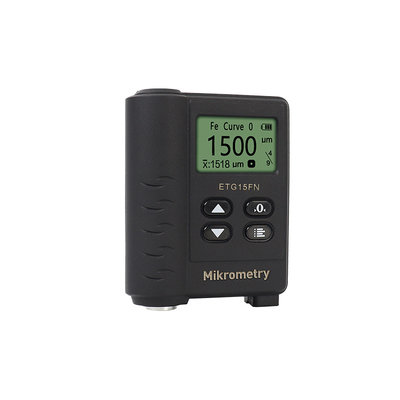

Digital Fe/NFe Car Paint Tester Coating Thickness Tester Coating Thickness Gauge Integrated Design ETG15FN

1 unit
MOQ
Digital Fe/NFe Car Paint Tester Coating Thickness Tester Coating Thickness Gauge Integrated Design ETG15FN
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 YEARS
Type: Handheld
Customized Support: OEM
Model Number: ETG15FN
Product Name: Car Paint Thickness Tester Meter Gauge Crash ETG15FN
Test Method: Magnetic Induction
Data Memory: 1500 Readings
Display: 128*64 Dot Matrix LCD
Resolution: 0-999um;0.1um ≥1000um;1um
Power Supply: 3 AAA Dry Batteries
Working Environment: Temperature: 0°C~+40°C Humidity: 20%~90%
Color: Gray
Dimension: 88 X 67 X 30 Mm
Weight: 120g
Basic Infomation
Model Number: ETG15FN
Payment & Shipping Terms
Product Description
Products Description
The Car Paint Thickness Tester Meter Gauge Crash is equipped with a LCD-screen and easy to read measurements at all angles.With Durable gauge and probe construction can quickly, non-destructively and accurately measure the thickness of non-magnetic coating (such as paint, electroplate, thin-film, etc.) on magnetic metal substrates and non-conductive coatings (e.g. paint, anodizing, ceramics, etc) on all non-ferrous metals (e.g. aluminum, copper, zinc die casting, brass, etc).It is widely used in manufacturing, paint shops, Automobile, metal processing, chemical industry, commodity inspection, and other testing areas.

Features:

* Very compact size with integrated probe.
* With F/NF integral probe with Automatic substrate detection.
* Quick one-hand operation. Place instrument on speci­men and see the measured value.
* Ready to measure immediately without calibration.
* Easy to perform zero-point correction provides correct measurement results for measuring applications with little changes in shape and substrate material. The one-point calibration function allows for an adaptation in cases of severe changes in shape or substrate materi­al and enables high-precision measurements in selected measurement ranges.
* Data transmitting to PC via USB cable.
* Statistic function allows for evaluation of a measurement series and display of the most significant characteristic
statistical values.
* Auto power off.
Product Paramenters
Test Method
Eddy Current
Measuring Range
0~1500μm (0 ~60 mil)
Resolution
0 ~ 999μm: 0.1μm
≥1000μm: 1μm
Accuracy
0 ~ 100μm: ± 1.5μm
101 ~ 1500μm: ≤ 1.5 %
Data Memory
Up to 1500 readings.
Display
Graphic LCD with backlight （128 * 64）
Power Supply
1.5V*3 (AAA alkaline batteries). Life: approx. 80houres
Operating Temperature
0 ~ 50°C
Dimension
88 X 67 X 30 mm
Weight
120g
