Application

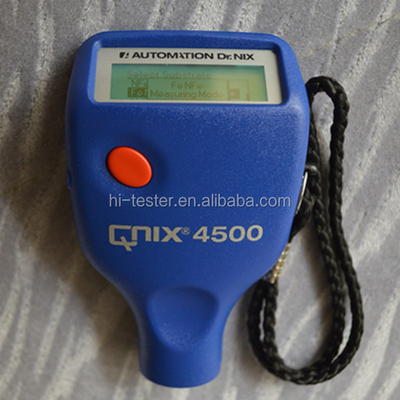

The latest design of the probe and the host integration type,QuaNix4200 is used for measureing nonmagnetic coatings such as paint,All kinds of anti-corrosion layer,powder spraying,plastic,rubber,synthetic material like enamel,Zn,Cr and Pb.
Features
1.Small and integral structure,Automatic open and shut down
2.Operation simple,Gently only put it, can measure the results.
3.Just setting zero,Don't need standard piece of calibration
4.Ruby probe,temperature compensation
Liquid crystal display content
1.Coating thickness values
2.Low voltage display
3.Error display
4.operator pattern
5.serial number
technical parameters |
|
Magnetic body | Fe Probe(4200/4500) |
Non Magnetic body | NFe Probe(4500) |
measurement range | Fe 0-3000um/NFe 0-2000um |
accuracy | 0-50um ≤+/-1um 50-1000um ≤+/-1.5%numerical reading 1000-3000um≤+/-3% |
Minimum contact surfaces | 10×<10mm> |
Minimum radius of curvature | convexity <3mm> concave surface <25mm> |
Minimum thickness of the matrix | Fe <0.2mm>/NFe <0.05mm> |
emperature compensation range | 0<-60°C> |
display | LCD |
probe | Ruby fixed |
power supply | 2×1.5Vdry battery |
size | 100×60×<27mm> |
