Thickness Tester

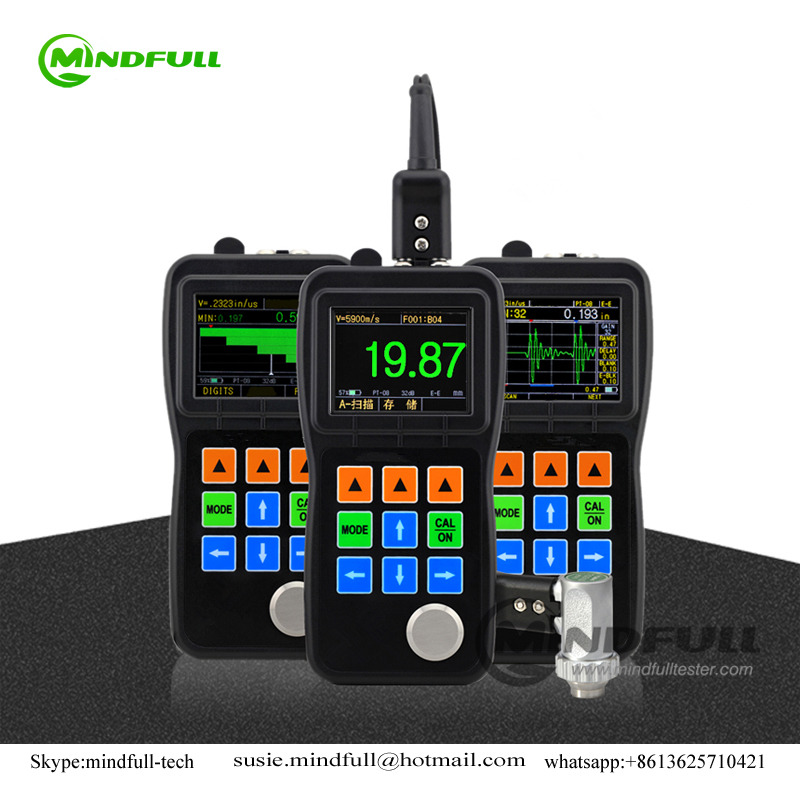

UM-5 Series A/b-Scan Ultrasonic Thickness Gauges is used for measuring the thickness of metal materials, pipes, pressure vessels, sheet metals (steel, aluminum), plastic, steel pipes, PVC pipes, glass and other materials. Also be widely used in manufacturing, metal processing industry, chemical industry, industry inspection and testing field.
Thickness Tester Parameter
Display | 2.4’’ color OLED,320*240 pixels,contrast 10000:1 |
Operation Principle | Pulse echo with dual element transducers |
Measuring Range | 0.50mm to 508mm(0.025" to 20.00"),depending on material,probe and surface condition |
Coating Mode Measuring Range | 3-80mm (UM-5D,UM-5DL) |
Measuring Limits of Tube(Steel) | Φ20mm*3.0mm(Standard probe) Φ15mm*2.0mm(PT-06 probe) The measuring error is up to±0.1mm |
Measuring Resolution | Selectable 0.01mm,0.1mm(0.001’’,0.01’’) |
Units | Inch/mm |
Probe Calibration | One-Point Calibration,Two-Point Calibration |
Measuring Error | ±0.05mm(Low limit to 10mm) ±(0.5%H+0.01)mm(10mm to high limit) |
Update Rate | Selectable 4Hz,8Hz,16Hz |
Material Velocity Range | 500-9999m/s(0.0197 to 0.3937in/us) |
Stability of the Values | Based on full digital technology, with zero cross measurement technology, the measured value will not be affected by echo intensity, material attenuation coefficient, gain and the height of gate, keep high measurement stability and reliability. |
Repeatability | ±0.05mm |
Gain | Low,Medium or High for varying test conditions |
Display Mode | Normal,Minimum/Maximum capture,DIFF/RR% |
V-Path Correction | Automatic |
Languages | Selectable Chinese,English,Germany,etc. |
Alarm Settings | Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). |
Power | 2AA size batteries |
Operating Time | Approximately 40 hours |
Instrument Shut-off | Selectable ALWAYS ON or AUTO OFF after 5,10,20 minutes of inactivity |
Operating Temperature | -10℃~+50℃(+10°F to +120°F) |
Size | 153mm*76mm*37mm(H*W*D) |
Warranty | 1 Year |
Weight | 200g(including batteries) |
Standard Configuration | Ultrasonic Thickness Gauge,Standard Probe,Instrument Case,Couplant Bottle, Operating Manual |
Optional Accessories | Various Probes,Probe Cables,Step Calibration Blocks,Communication Software and Rubber Bumpers. |
Data Storage(UM-5DL) | |
Capacity | 400files,100000data |
File Format | Raster file |
Column and Row | 21*12 |
Communication | USB2.0(FULL SPEED) |
Software | DataView |
