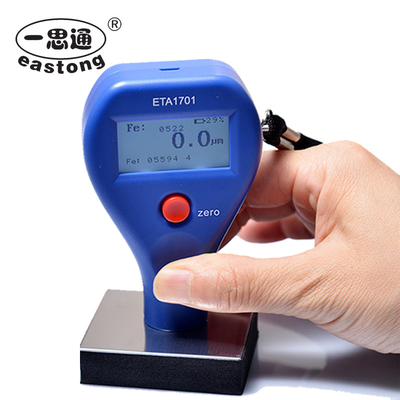

ETA-1701 Portable High Quality Zinc Coating Thickness Gauge Wurth Coating Thickness Tester

1 Piece
MOQ
$280.00(1 - 49 Pieces) $180.00(50 - 99 Pieces) $130.00(>=100 Pieces)
Price
ETA-1701 Portable High Quality Zinc Coating Thickness Gauge Wurth Coating Thickness Tester
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: ETA-1701
Color: Blue
Demension: 125*74*33(mm)
Weight: 160g
Measure Range: 0~1000um
Power: 1.5V(AAA)*2
Resolution: 0.1μm
Usage: Portable Paint Coating Thickness Gauge
Principle: Magnetic Method (F-type Probe) & Eddy Current Method (NF-type Probe)
Basic Infomation
Model Number: ETA-1701
Payment & Shipping Terms
Packaging Details: 1pc(plastic box):250(L)*70(H)*210(W) (mm) 10pcs(carton): 20pcs(carton):
Supply Ability: 100 Piece/Pieces per Week
Product Description
Product Description

BRIEF INTRODUCTION

* It meets the standards of both ISO2178 and ISO-2361 as well as DIN, ASTM and BS. Suitable for the laboratory and for use in harsh field conditions.
* The gauge can measure the thickness of non-magnetic coating layers on magnetic substrate.Such as: (aluminum, chrome, copper, enamel, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)..
* The gauge can measure the thickness of non-metals coatings layers covered on non-magnetic metals substrate. Such as: (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on non-nagnetic metals substrate (aluminum, brass, zinc and nonmagnetic stainless steel).

Standard Delivery

Main unit(1000um).............1pc
Instruction manual............. 1pc
Substrate............................2pc
Carrying case..................... 1pc
Calibration foil set.............. 1set
Technical Specification
Model No.
ETA1701
Measuring principle
Fe
NFe
Measuring range (µm)
O-1250µm
Accuracy
±‹1-3% H+1›µm
H refers to the thickness of testing piece
Minimum resolution (µm)
0.1µm
Min curvature of the min area (mm)
Convex:5mm, concave:25mm
Diameter of the min area (mm)
Φ7
Critical thickness of substrate (mm)
0.5
Dimensions
100*65*25mm
Memory
1173
Power supply
AAA Alkaline battery
Standard configuration
Main Machine,4 calibration specimens (38µm,126µm,183µm,249µm)
